DIY 48 inch Simple Spreader Bar – AXION
$349.00 – $1,299.00

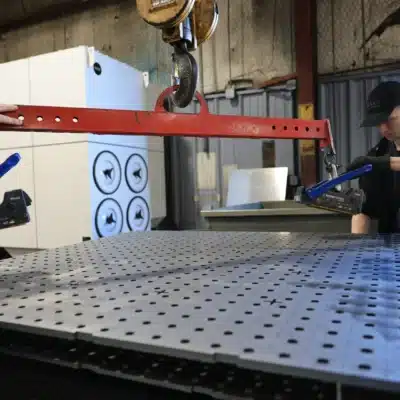

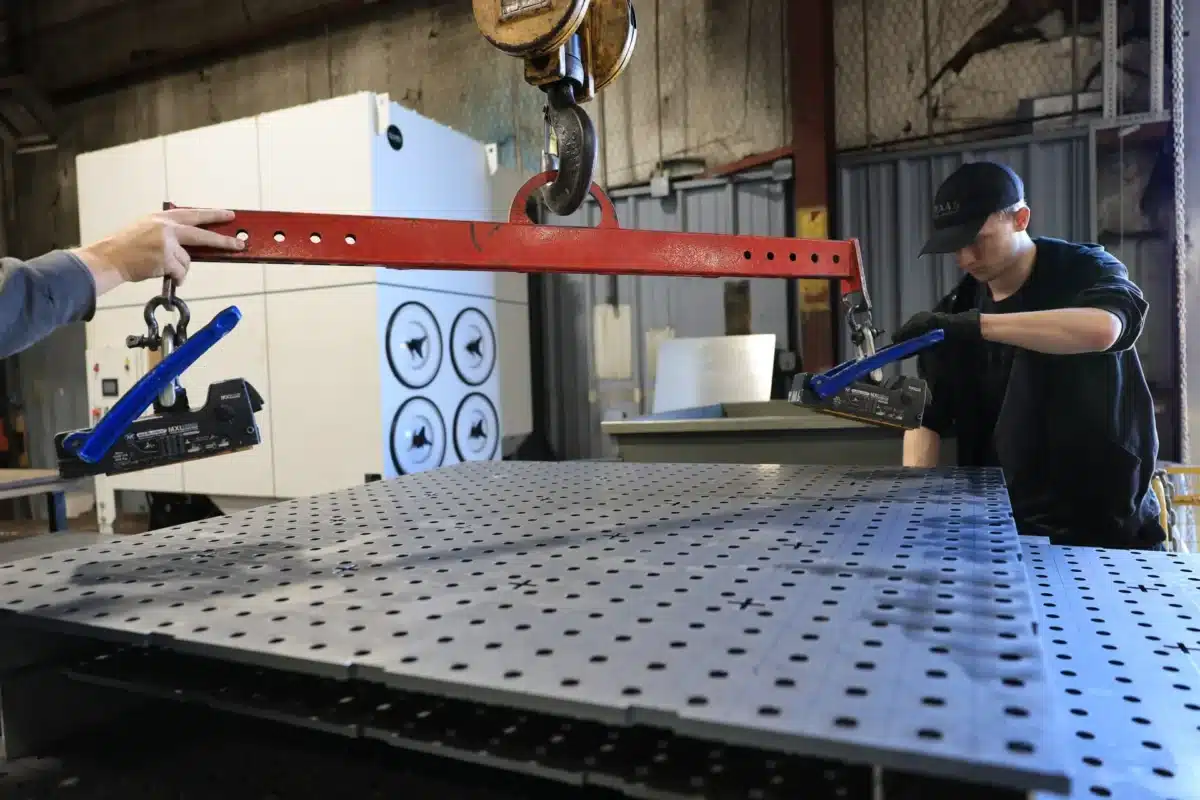

Our simple spreader bar kit is designed for lifting from two different positions, such as when lifting heavy plate in conjunction with a pair of lifting magnets. The product has been in continuous use in the Texas Metal Works facility for years and easily handles working loads of 1000+ pounds. NOTE: Fabrication of this kit requires a certified welder and inspection due to the critical nature of the project.
Welding Difficulty
3 of 10
Novice - Basic position welding
John P.
Founder and Chief Mad Scientist of Texas Metal Works. Author, fabricator, philosopher, cook, artist, photographer.
- Premium Quality
- Precision Engineered
- Nationwide Shipping
- Support Forums
If you search for spreader bars you’ll quickly find that a fully fabricated, certified spreader bar will cost $1,000+ (or more). And it makes a lot of sense! These tools are engineered and certified to meet OSHA and other safety requirements, and a lot of testing and engineering go into their manufacture.
At Texas Metal Works, we needed some spreader bars for use with lifting magnets to move the heavy materials we use, so we developed our own. We’ve been using our design for years, and we’re making it available to the WeldProjects community now as well.
Product Video
Build Components

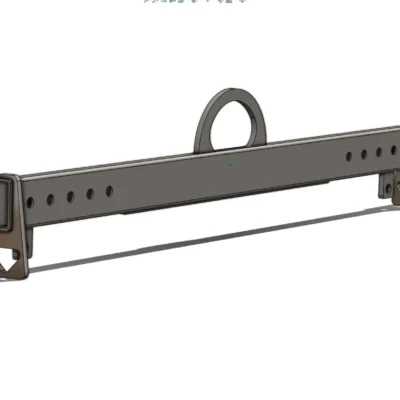

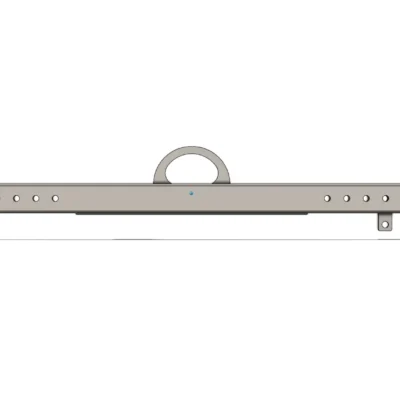

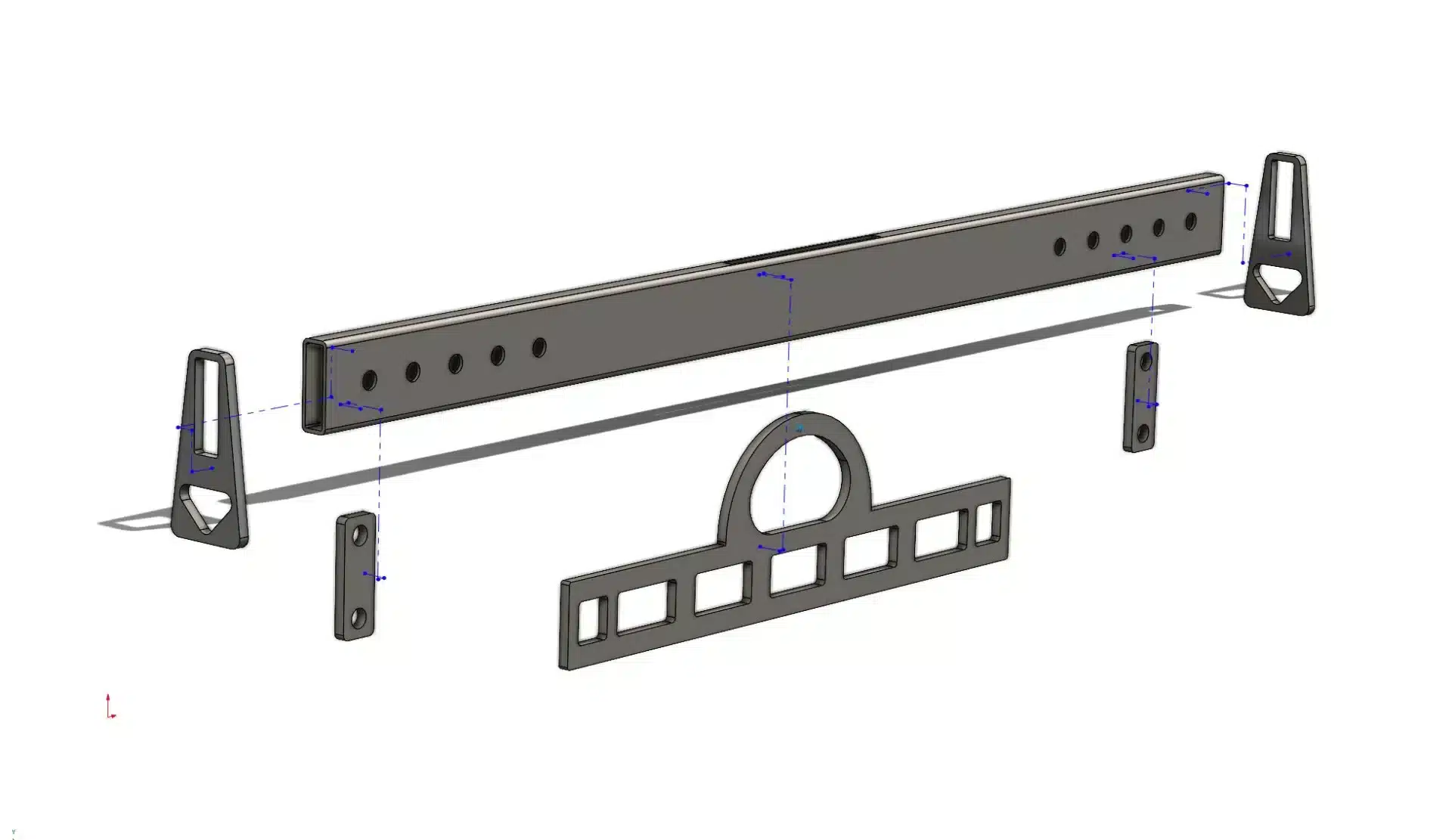

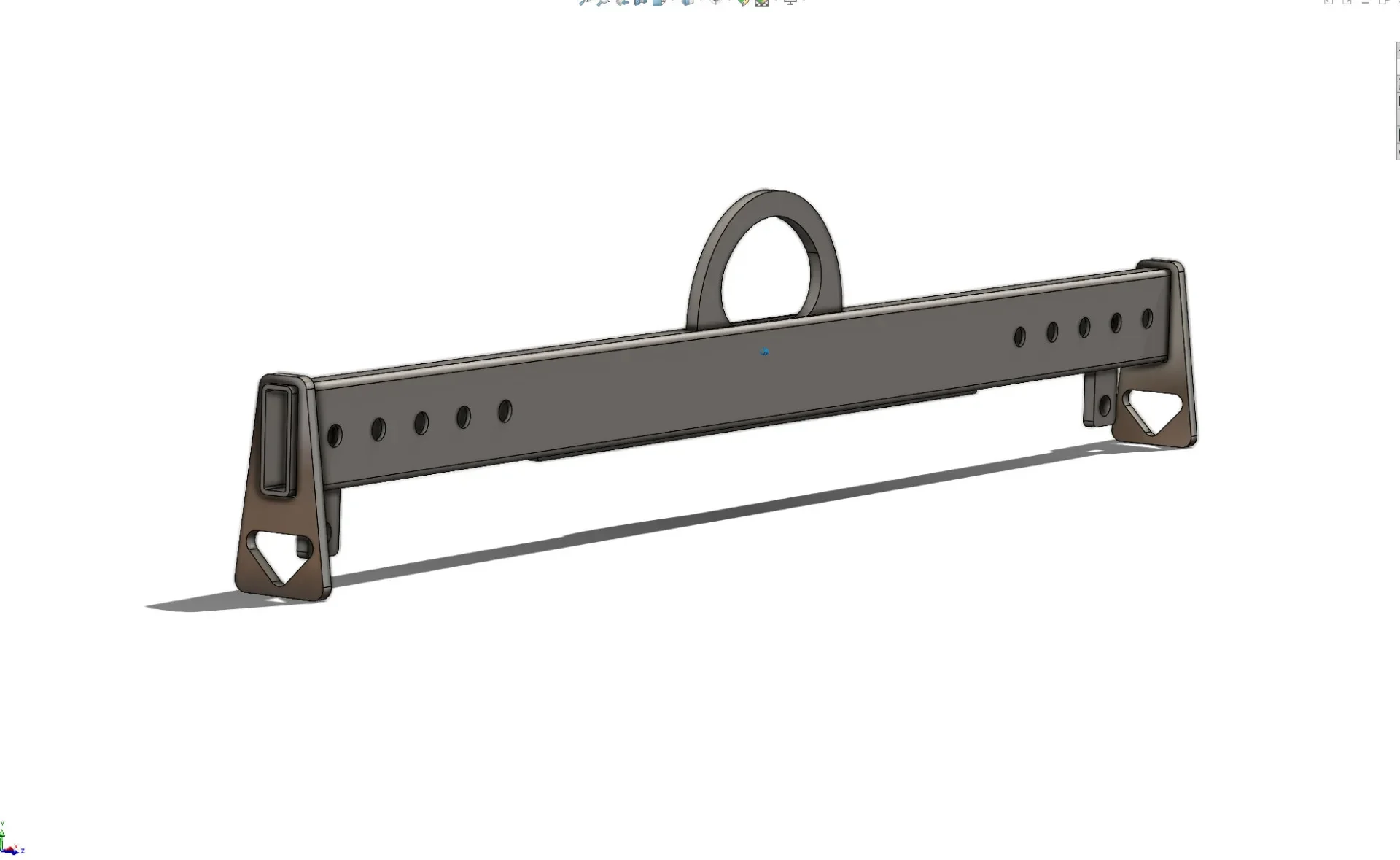

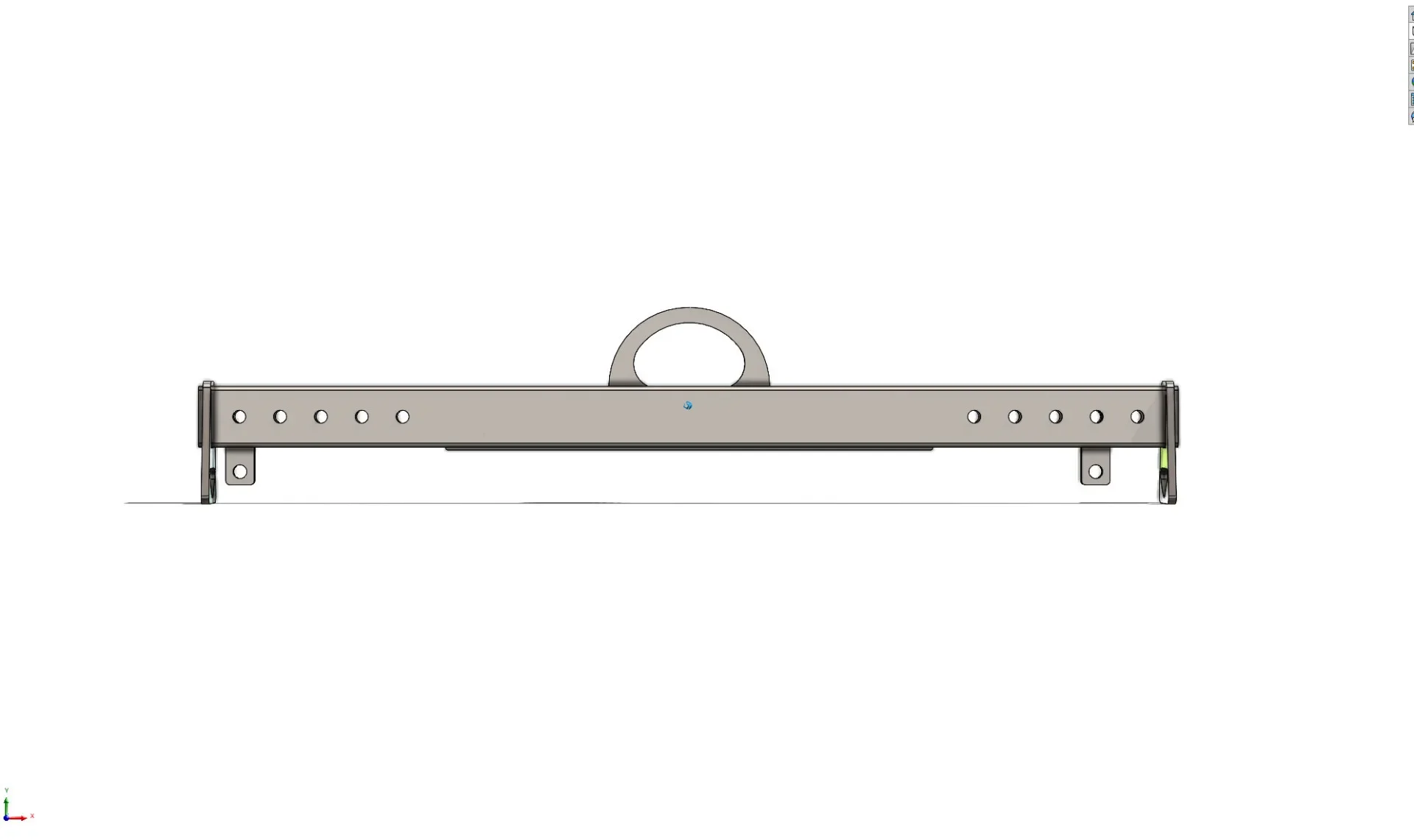

Our 48 inch spreader bar is designed to offer protection against weld failure by using a laser cut plate inside a laser cut tube. There is a large loop designed to accommodate a lifting hook, which slides into a slot in the bottom of the laser cut tube. The plate physically can not pass through the top of the tube, and the combination of the two is very strong when fully welded.

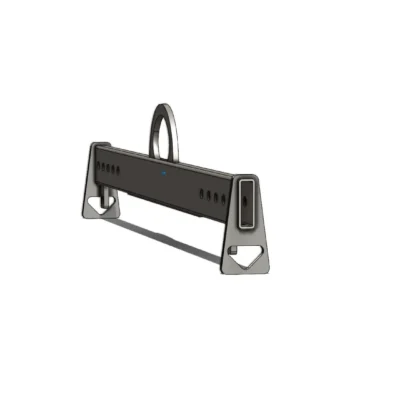

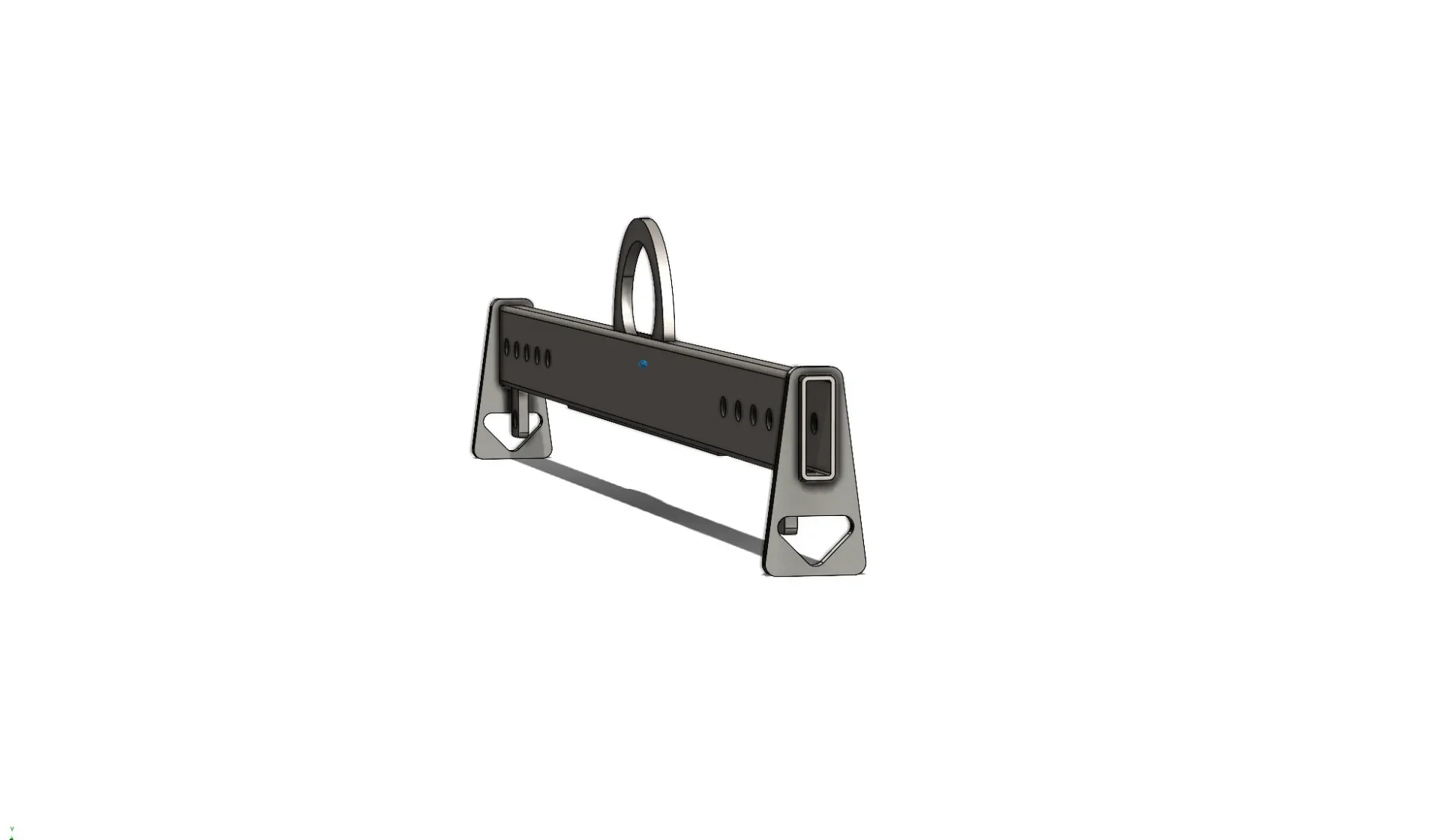

Two pieces are designed to slip over the tube and be welded near the end to serve as stands, and also additional lifting points. While two bars can be bolted into any of the holes in the tubing to be used as hangers.
The flat pieces are all laser cut from 3/8″ A572-50 steel, and the tubing is standard 11ga steel.
| Weight | 30 lbs |
|---|---|
| Dimensions | 48 × 4 × 12 in |
| Options: DIY Kit | DIY Kit, Fully Assembled |
